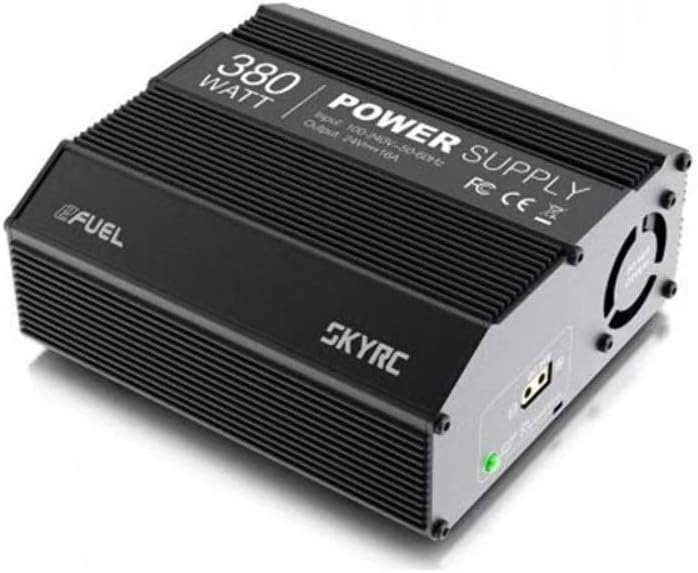

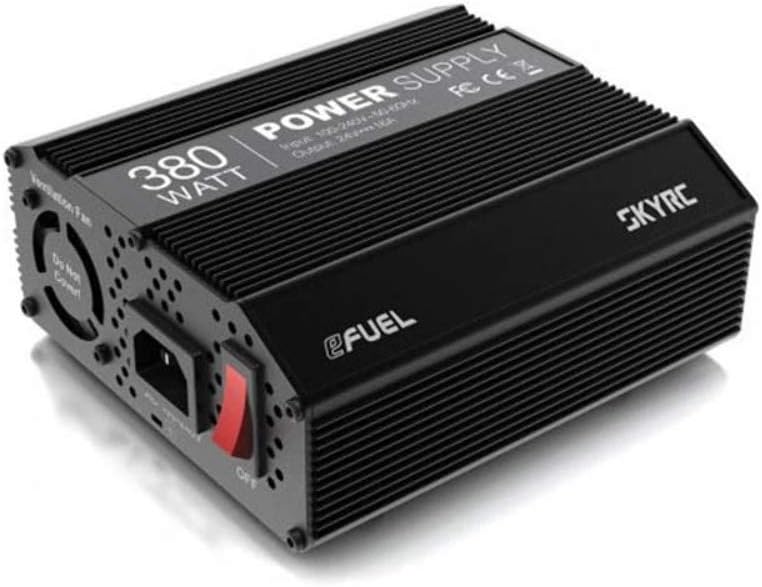

380W 24V 16A Power Supply T725420
Sale price
$15.90
Regular price $74.69
Skip to product information
Active PFC- Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.
Universal Operation,Worldwide Safe- AC 100-240V AC Power input; No need any voltage converter.
Intelligent Air Cooling System- Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.
Overload/Error Indication- The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.
Output Current：16A Output Voltage：24V DC±0.5V
380W 24V 16A Power Supply T725420
Sale price
$15.90
Regular price $74.69
Shipping calculated at checkout.
Active PFC- Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.
Universal Operation,Worldwide Safe- AC 100-240V AC Power input; No need any voltage converter.
Intelligent Air Cooling System- Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.
Overload/Error Indication- The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.
Output Current：16A Output Voltage：24V DC±0.5V

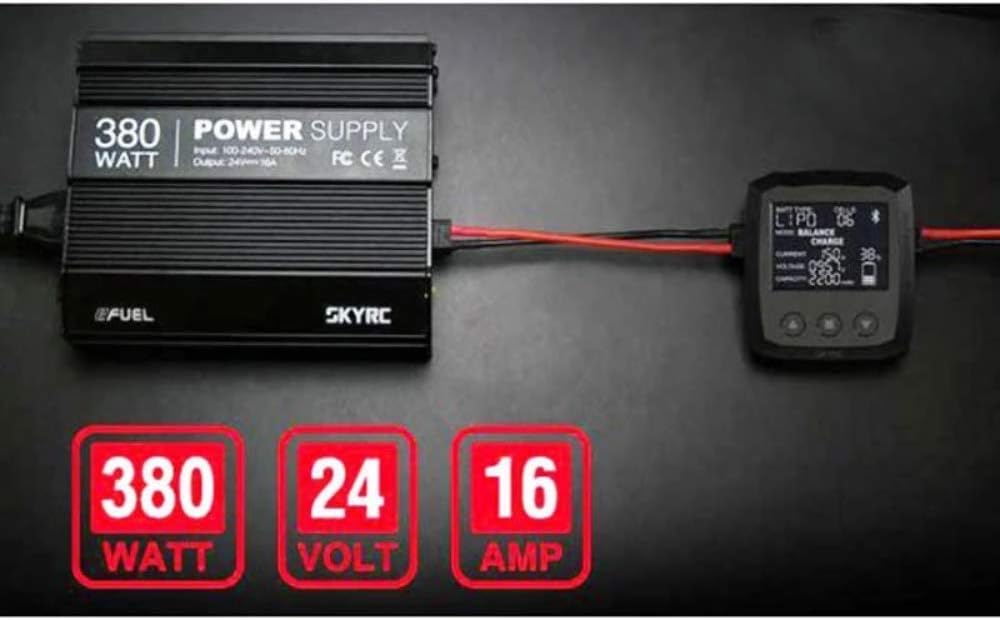

The eFUEL 380W, 16A AC/DC Switching Power Supply is designed and manufactured by SkyRC, skilled professionals using the highest standard in workmanship. This power supply is designed to use regular household AC power source to power the latest in high power lipo chargers such as the B6 nano. The eFUEL converts standard household power 100-240V AC to 24V DC power and can supply up to 16 amperes of continuous power.
Key Features- Active PFC: smaller AC input current less interference, and Conform to CE Regulations
- DC power outputs, up to 16 amperes
- Output voltage 24V
- AC 100-240V worldwide operation: need not any alternative switcher, worldwide safe operation.
- Smart cooling fans turned on upon the temperature automatically
- Over current, over voltage, over load and over temperature protection
- Short-circuit protection on output, safer and more reliable
- Voltage: 100-240V AC
- Input AC Frequency: 50-60Hz
- Output Voltage: 24V DC±0.5V
- Output Current: 16A
- Current Overload Protection: 17A ±1A
- Output Voltage Ripple: <300mV
- Power Efficiency: 88%
- Power Factor: >0.98
- Over Temperature Protection: <80℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
Case Size：165x139x59.5mm
Weight：1.62kg
