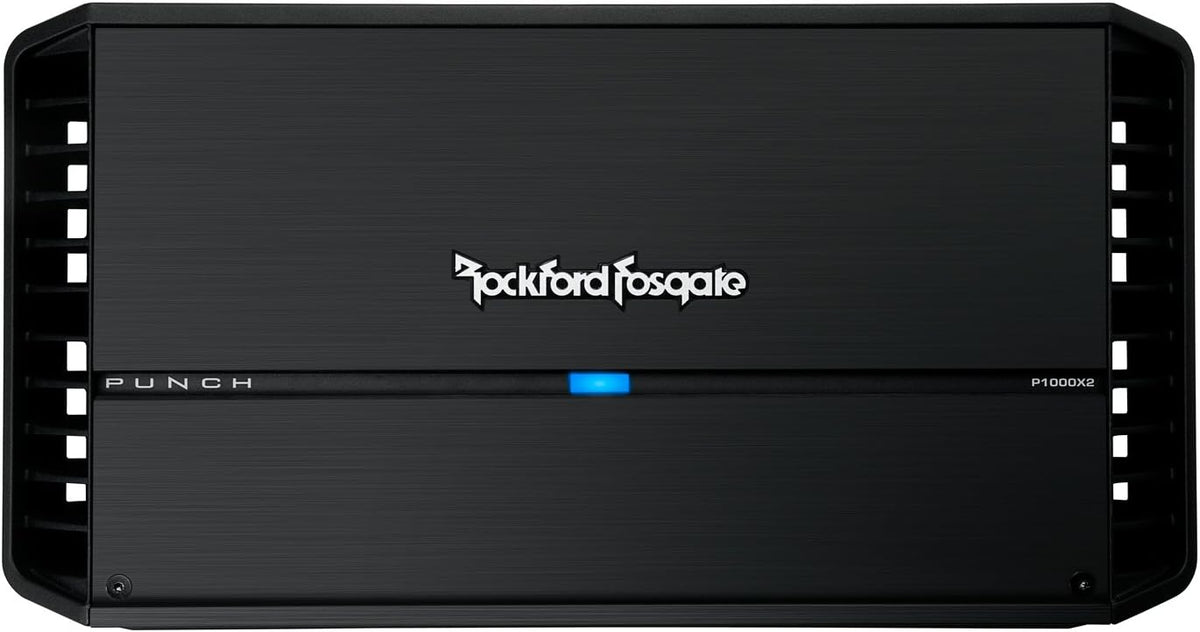

1000 Watt 2 Channel Amplifier C86386
Sale price
$25.99
Regular price $106.23
Skip to product information
The Punch P1000X2 is a full chassis (2.38” x 7.76” x 15.03”) 2-channel stereo amplifier, that delivers a rocking 1000 Watts of RMS PowerVersatile design for full-range or component systems or can be bridged for use with several subwoofers (RMS Power Output: 300 Watts x 2 @ 4-Ohm OR 500 Watts x 2 @ 2-Ohm OR 1000 Watts x 1 @ 4-Ohm Bridged)RCA inputs can accept both Hi and Low level audio signals without the need of a signal converterFeaturing Class-A/B topology, on-board Punch EQ with +18dB boost @ 45Hz, variable 12 dB/Oct Butterworth crossovers, and C.L.E.A.N. Set-upFamous Rockford Fosgate build quality with a full 1-year warranty when purchased from an authorized Rockford Fosgate reseller300 Watts RMS x 2 @ 4-Ohms / 500 Watts RMS x 2 @ 2-Ohms / 1000 Watts RMS x 1 Bridged @ 4-Ohms (4-Ohm stable in bridged mode)Works with factory installed & aftermarket source units. Operating Voltage 9 - 16 VDC
1000 Watt 2 Channel Amplifier C86386
Sale price
$25.99
Regular price $106.23
Shipping calculated at checkout.
| P1000X1bd | P500X1BD | P300X1 | P1000X2 | P500X2 | P300X2 | |
|---|---|---|---|---|---|---|
| Number of Channels | 1 | 1 | 1 | 2 | 2 | 2 |
| Total Power (RMS) | 1000 | 500 | 300 | 1000 | 500 | 300 |
| Bridgeable | No | No | No | Yes | Yes | Yes |
| Circuit Topology Class | Class BD | Class BD | Class A/B | Class A/B | Class A/B | Class A/B |
| Cooling | Convection | Convection | Convection | Convection | Convection | Convection |
| Recommended Fuse (not included) | 140 A | 80 A | 50 A | 140 A | 80 A | 50 A |
| Dimensions (H x W x D) | 2.38" x 7.76" x 13.28" | 2.38" x 7.76" x 11.03" | 2.38" x 7.76" x 9.86" | 2.38" x 7.76" x 15.03" | 2.38" x 7.76" x 13.28" | 2.38" x 7.76" x 9.86" |
| Rated Power | 300 Watts x 1 @ 4-Ohm | 150 Watts x 1 @ 4-Ohm | 200 Watts x 1 @ 4-Ohm | 300 Watts x 2 @ 4-Ohm | 150 Watts x 2 @ 4-Ohm | 100 Watts x 2 @ 4-Ohm |
| (or) | 500 Watts x 1 @ 2-Ohm | 300 Watts x 1 @ 2-Ohm | 300 Watts x 1 @ 2-Ohm | 500 Watts x 2 @ 2-Ohm | 250 Watts x 2 @ 2-Ohm | 150 Watts x 2 @ 2-Ohm |
| (or) | 1000 Watts x 1 @ 1-Ohm | 500 Watts x 1 @ 1-Ohm | 1000 Watts x 1 @ 4-Ohm Bridged | 500 Watts x 1 @ 4-Ohm Bridged | 300 Watts x 1 @ 4-Ohm Bridged |
