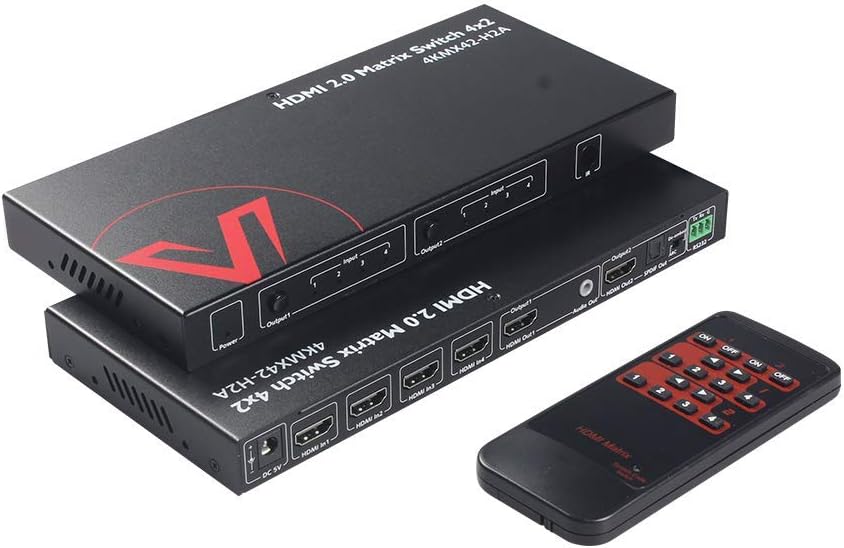

HDMI 2.0 Matrix Switch 4x2 4K@60Hz 4:4:4 HDR 18Gbps T5079
Sale price
$23.99
Regular price $97.49
Skip to product information
��4K@60Hz 4 IN 2 OUT Matrix��HDMI 2.0 Matrix send any of 4 inputs to output 1 and/or output 2. Outputs�� videos can be different or the same. Support HDR10 & HLG(Hybrid Log Gamma). Resolution up to 4K@60hz 4:4:4, Able to play 4K and 1080P Simultaneously, 18Gbps bandwidth.
��ARC & Audio Extraction �� DIP switch control on output2: ARC & De-embed allows Audio Return Channel function or Audio extract accordingly. S/PDIF (Toslink) OUT: Support PCM 2.0/5.1, DTS up to 5.1 CH. 3.5mm L/R headphone analog audio de-embedded from output1.HDMI audio formats supports PCM 2.0/5.1/7.1, TrueHD, Atmos, DTSHD Master Audio and DTS:X.
��Downscaling�� Each output supports scaling from 4K to 1080P independently. Plug & Play. To get both of Atmos in sync, pls ensure TV and Receiver supports them both.
��IR Remote and Button Controls, RS-232��Short pressing the system code switch on the remote��s panel to avoid matrix's remote interfering other IR devices. Advanced user may need to control the matrix through RS232 serial communication. We provide a fully documented API for 4KMX42-H2A.
��Trouble-free Warranty��Work well with HDMI 2.0 HDCP 2.2 devices, Xfinity box, Video Capture, Amazon Fire TV, Comcast etc. Preventing thunder strikes, built-in surge protection and superior ESD protection. Sturdy metal enclosure minimizes noise interference. Mounting Brackets (with Screws) for additional installation. 1-Year-Warranty for all customers and 3-Year-Warranty for business customers and lifetime 1 to 1 Customer Services from AV Access.
HDMI 2.0 Matrix Switch 4x2 4K@60Hz 4:4:4 HDR 18Gbps T5079
Sale price
$23.99
Regular price $97.49
Shipping calculated at checkout.
��4K@60Hz 4 IN 2 OUT Matrix��HDMI 2.0 Matrix send any of 4 inputs to output 1 and/or output 2. Outputs�� videos can be different or the same. Support HDR10 & HLG(Hybrid Log Gamma). Resolution up to 4K@60hz 4:4:4, Able to play 4K and 1080P Simultaneously, 18Gbps bandwidth.
��ARC & Audio Extraction �� DIP switch control on output2: ARC & De-embed allows Audio Return Channel function or Audio extract accordingly. S/PDIF (Toslink) OUT: Support PCM 2.0/5.1, DTS up to 5.1 CH. 3.5mm L/R headphone analog audio de-embedded from output1.HDMI audio formats supports PCM 2.0/5.1/7.1, TrueHD, Atmos, DTSHD Master Audio and DTS:X.
��Downscaling�� Each output supports scaling from 4K to 1080P independently. Plug & Play. To get both of Atmos in sync, pls ensure TV and Receiver supports them both.
��IR Remote and Button Controls, RS-232��Short pressing the system code switch on the remote��s panel to avoid matrix's remote interfering other IR devices. Advanced user may need to control the matrix through RS232 serial communication. We provide a fully documented API for 4KMX42-H2A.
��Trouble-free Warranty��Work well with HDMI 2.0 HDCP 2.2 devices, Xfinity box, Video Capture, Amazon Fire TV, Comcast etc. Preventing thunder strikes, built-in surge protection and superior ESD protection. Sturdy metal enclosure minimizes noise interference. Mounting Brackets (with Screws) for additional installation. 1-Year-Warranty for all customers and 3-Year-Warranty for business customers and lifetime 1 to 1 Customer Services from AV Access.
| 4KMX42 | 4KMX42-H2A | 4KMX44-H2 | |
|---|---|---|---|
| Video Resolution | 4K@30Hz | 4K@60Hz | 4K@60Hz |
| I / O | 4 IN 2 OUT | 4 IN 2 OUT | 4 IN 4 OUT |
| Audio De-embed | 3.5mm stereo | 3.5mm stereo/SPDIF optical | SPDIF coaxial |
| Downscaler | �� | ||
| ARC | �� | �� | |
| Control | Switch Button/IR Remote | Switch Button/IR Remote/RS232 | Switch Button/IR Remote/RS232 |
| Web UI | �� | �� | |
| HDMI Version | 1.4 | 2.0 | 2.0 |
| HDCP Version | 1.4 | 2.2 | 2.2 |
